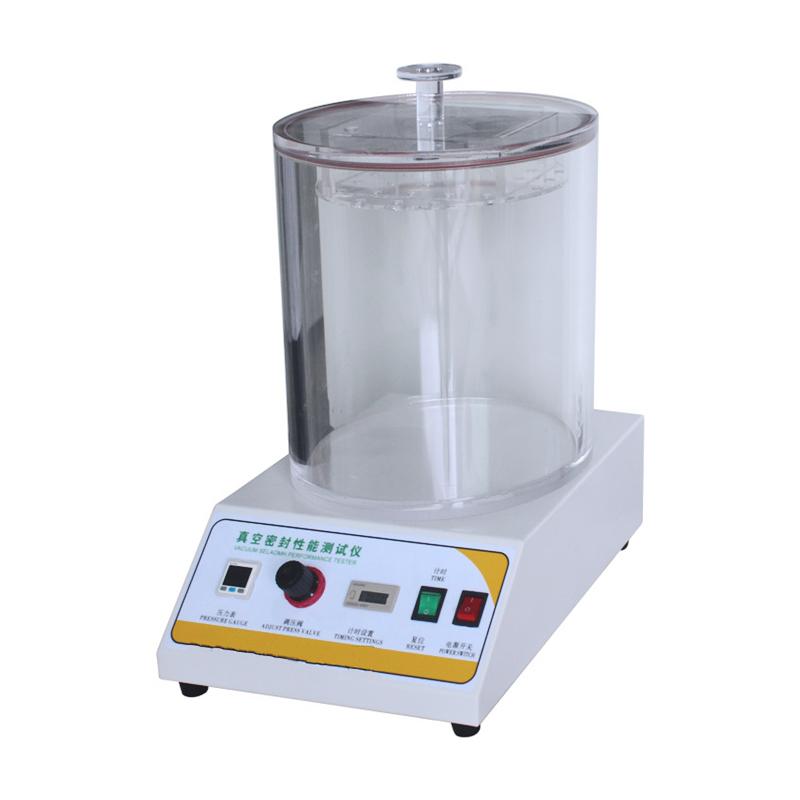

High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles

  • 1
  • 2
  • 3

Price : US$2000-$30000

Place of Origin : China

Brand Name : CHENGFENG

Certification : ISO,CE

MOQ : 1 Set

Packaging Details : Wooden cases

Delivery Time : 10 Work Days

Payment Terms : T/T,Cash,L/C,Western Union,MoneyGram

Supply Ability : 5 units per month

warranty : 1 Year

model number : CF7119

Standard : GB/T 15171, ASTM D3078

Application : of packaging bags, bottles, tubes, cans

Function : suitable for the sealing test

True space : -90~0kPa

Accuracy : grade 1

Air pressure : 0.7MPa

Power supply : AC 220V 50Hz

Net weight : 15kg

Contact Now

Leak Testing Machine, Suitable for the Sealing test of Packaging Bags, Bottles, Tubes, Cans, Boxes, Etc.


High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles
High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles
High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles
Specification
Product use:
 It is suitable for the sealing test of packaging bags, bottles, tubes, cans, boxes, etc. in food, pharmaceutical, medical
equipment, daily cosmetics, automobiles, electronic components, stationery and other industries. It can also be used to test the sealing performance of the specimen after the drop and pressure test
Test Principle:
By vacuuming the vacuum chamber, the internal and external pressure difference of the sample immersed in water is generated, and the gas escape in the sample is observed, so as to determine the sealing performance of the sample; By vacuuming the vacuum chamber, the internal and external pressure difference of the sample is generated, and the shape of the sample is restored after the expansion of the sample and the release of the vacuum, so as to determine the sealing performance of the sample.
Features:
1. LED digital control, experimental process automation
2. Pressure setting and holding time
3. PVC operation panel, film buttons, more convenient operation
4. High quality thickened plexiglass sealed barrel with wall thickness of 15mm
5. Digital preset test vacuum degree and vacuum holding time
6. Precision pneumatic components, superior sealing performance
7. Automatic constant pressure air supply, no need for manual operation
Technical Parameters:
1. True space: -90~0kPa
2. Accuracy: grade 1
3. Effective size of vacuum chamber: Φ270mm×270 mm (H) (standard)
Note: Other sizes can be customized.
4. Air pressure: 0.7MPa (air source provided by user)
5. Air source interface: Φ8 polyurethane pipe
6. Dimensions: 460mm(L)×360mm(B)×530mm(H)
7. Power supply: AC 220V 50Hz
8. Net weight: 15kg
Standard configuration: main machine, experimental sealed barrel, air source line
According to standards: GB/T 15171, ASTM D3078
Company Profile
High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles
High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles

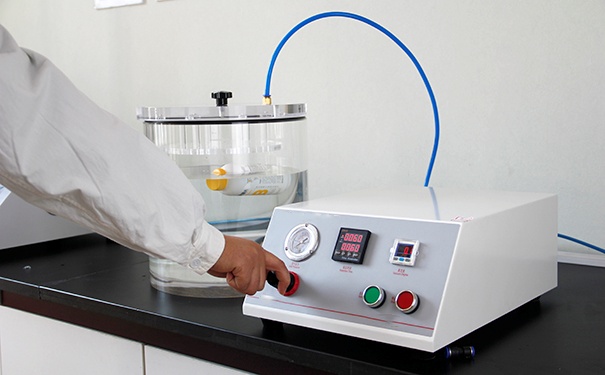

Customer Photos
High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles
1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.
Packing & Delivery
High Accuracy Vacuum Leak Test Machine Vacuum Leak Tester For Packaging Bags Bottles
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
